Description

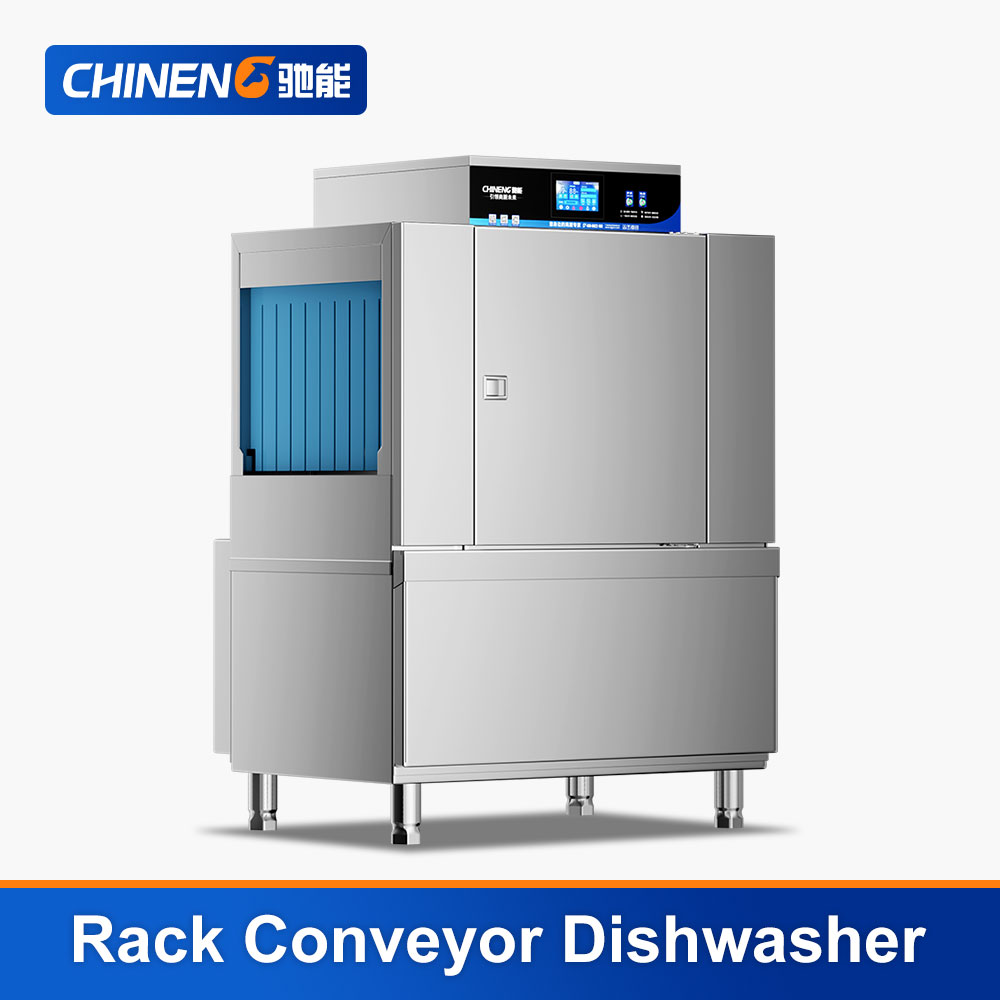

Commercial Rack Conveyor Dishwasher

CHINENG narrow rack conveyor dishwasher is purpose‑built for operations where every centimetre counts. Unlike bulkier machines, this slim‑profile model navigates narrow doorways and fits neatly into constrained spaces without compromising throughput. The conveyor system drives racks through a thorough cleaning sequence: a powerful main wash with precisely angled nozzles, a high‑temperature rinse for sanitation, and a final drying stage that leaves tableware ready for use. Safety features include an automatic halt when the side door is opened, and the stainless steel heating elements ensure quick heat‑up. The intuitive touch panel and German‑engineered electrical components guarantee stable performance, while the entire body is fabricated from 304‑grade stainless steel for maximum hygiene and longevity.

Comprehensive CleaningHeat Recovery Energy and Water SavingQuickly Dry Tableware

More Information

    • Ultra‑narrow profile – fits through standard 425mm doorways and tight kitchen aisles
    • Retains full wash‑rinse‑dry functionality despite the slim footprint
    • Space‑saving design – ideal for small restaurants, food trucks, and galley kitchens
    • High‑pressure spray system with optimised nozzle angles for thorough cleaning
    • Hot‑water rinse zone ensures effective sanitisation
    • Integrated drying stage reduces manual wiping
    • Safety interlock – operation stops instantly when side door opens
    • Rapid‑heating stainless steel tubes for minimal start‑up waiting
    • Simple one‑touch control with programmable cycle options
    • German‑origin electric control unit for dependable, long‑term operation
    • Full 304 stainless steel construction – corrosion‑resistant and easy to sanitise

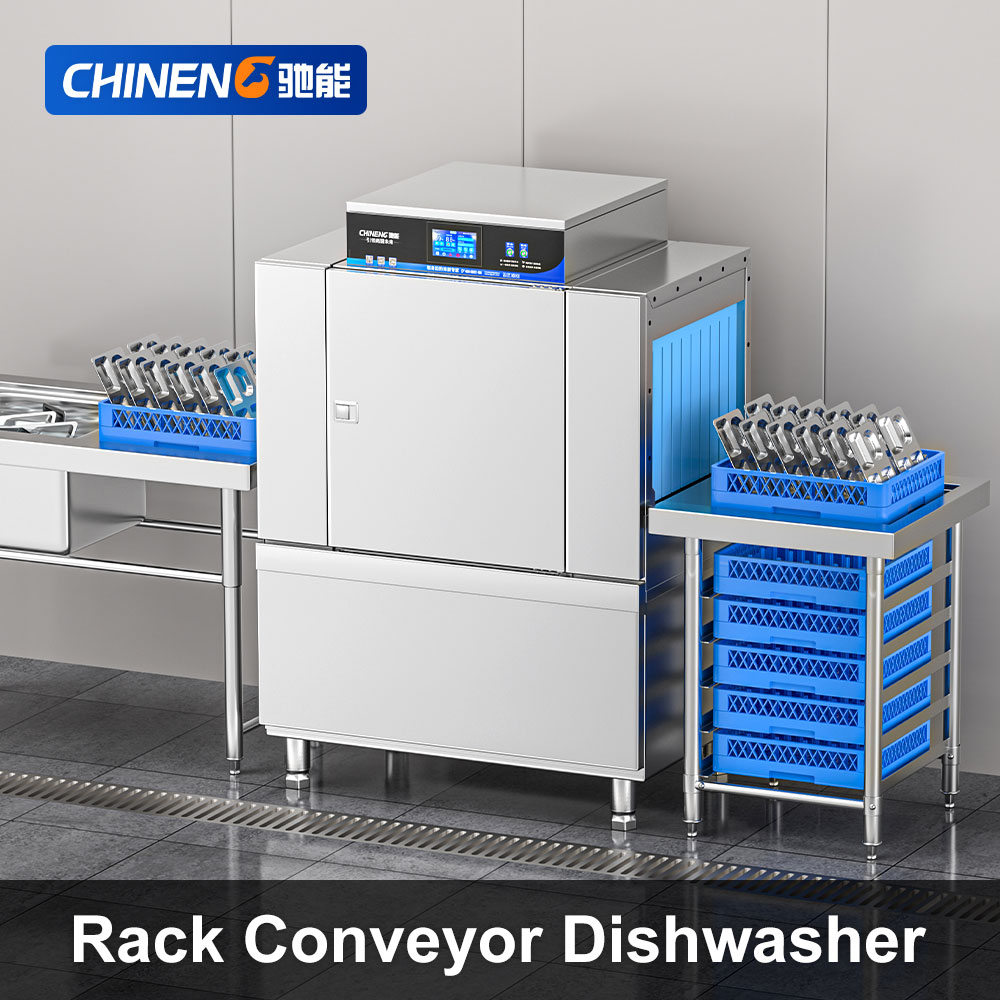

Product Real Shot

Conveyor Type Dishwasher Real ShotConveyor Type Dishwasher Real ShotConveyor Type Dishwasher Real Shot
Additional information
Dimensions 1100 × 770 × 1600 mm
Rated Voltage

380V (customizable)‌

Rated Power

46.5kW

Washing Capacity

260 racks per hour‌

Main Wash Temperature

50~60°C

Rinse Temperature

80~90°C

Max. Product Width

425mm

Water Consumption

300 L/h

Body Module

1 main washing, 1 rinsing

Body Material

304 stainless steel (SUS 304)‌
